The Complete PWA Icon Optimization Guide

Introduction

In the dynamic landscape of web development, the manifest.json file stands as a linchpin for delivering a seamless user experience. While we’ve explored the basics of this file in a previous blog, let’s delve deeper into one crucial aspect that often gets overlooked – optimizing icons for various sizes and the ingenious use of maskable icons. These practices are essential for creating professional, platform-adaptive Progressive Web Apps.

The Significance of Icons in manifest.json

Icons are the visual ambassadors of your web application, and they play a crucial role in creating a recognizable and consistent brand image. In the context of manifest.json, specifying icons for multiple sizes ensures that your application looks polished and professional across a variety of devices and platforms.

Icon Sizes and Their Significance

192x192, 512x512: These two sizes are the minimum requirement for installable PWAs in Chromium-based browsers (Chrome, Edge, Samsung Internet). These are the core sizes you must include for your PWA to be installable.
1024x1024: Increasingly important for high-density displays and future-proofing your application as screen resolutions continue to improve.
Additional sizes (optional): While no longer strictly necessary for modern devices as browsers can efficiently resize from larger icons, you may still include sizes like 48x48, 72x72, 96x96, 144x144, and 384x384 for maximum compatibility with legacy devices.

Maskable Icons: Unveiling a New Dimension

Enter the concept of maskable icons, a feature that brings a new level of customization and adaptability to your web app’s iconography. A maskable icon is an icon that can be dynamically masked to fit the theme and shape preferences of the user or platform, allowing for a more integrated and harmonious visual experience.

The Safe Zone Concept

For maskable icons to work effectively, you must design your icon with a “safe zone” in mind. This is typically a circular area in the center of your icon with a radius equal to 40% of the icon’s width. The main content of your icon should be within this safe zone to ensure it remains visible when the icon is masked to different shapes (circles, squircles, rounded squares, etc.) by various platforms.

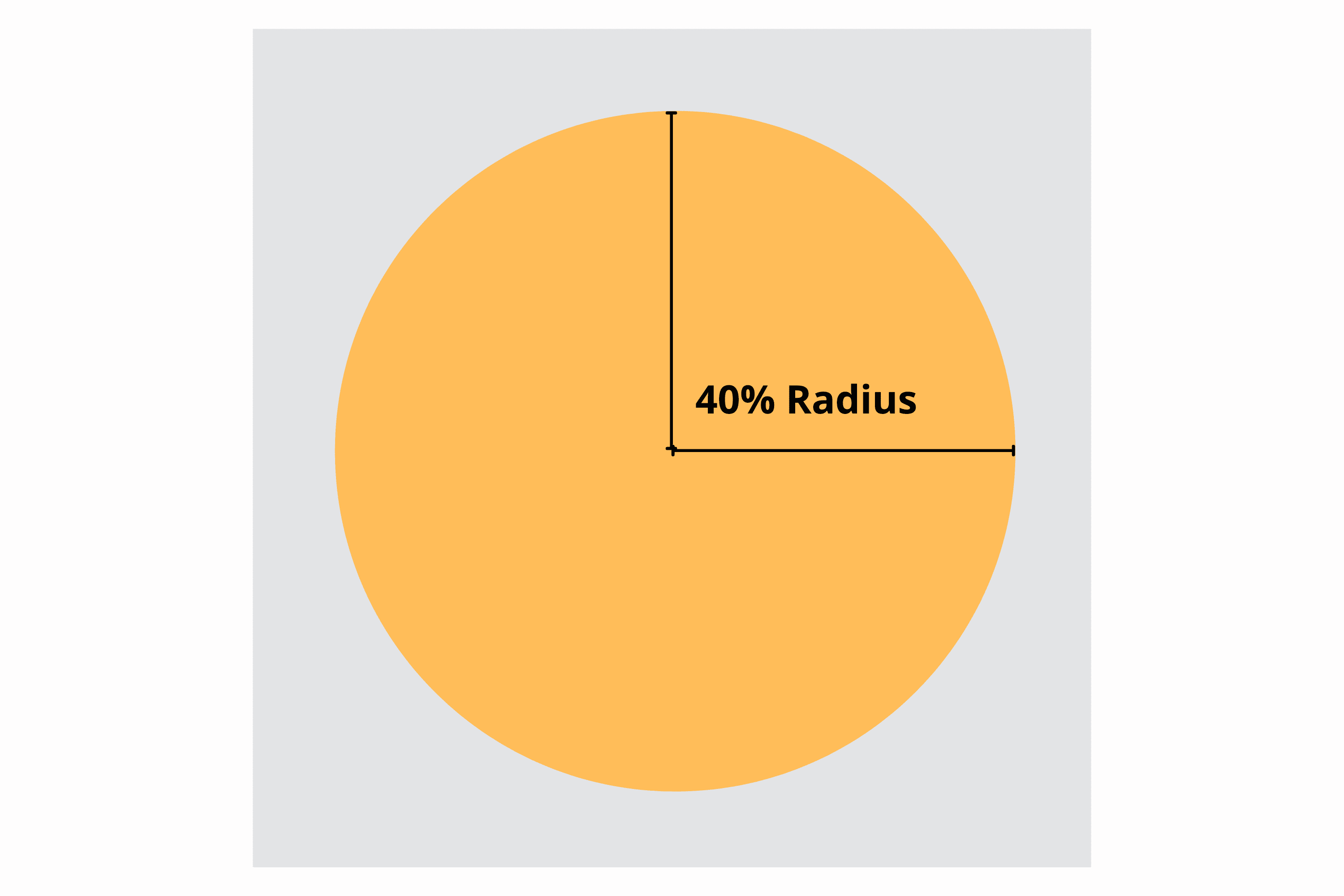

Maskable icon safe zone

Implementing Maskable Icons in manifest.json

{
  "icons": [
    {
      "src": "icons/icon-192.png",
      "sizes": "192x192",
      "type": "image/png"
    },
    {
      "src": "icons/icon-512.png",
      "sizes": "512x512",
      "type": "image/png"
    },
    {
      "src": "icons/maskable-icon-512.png",
      "sizes": "512x512",
      "type": "image/png",
      "purpose": "maskable"
    },
    {
      "src": "icons/icon-1024.png",
      "sizes": "1024x1024",
      "type": "image/png"
    }
  ]
}

By including the “purpose”: “maskable” attribute for a dedicated maskable icon, you indicate that this specific icon is designed to be masked, giving browsers and platforms the flexibility to adapt the icon’s shape based on their UI guidelines. If your icon serves both general and maskable purposes, you can use “purpose”: “any maskable” to indicate multiple purposes.

Advantages of Maskable Icons

Adaptability: Maskable icons seamlessly adapt to various shapes and themes, enhancing the overall aesthetic of your web app across different platforms and device manufacturers.
User Preference: Users appreciate the ability to have a consistent visual experience within their chosen device theme, and maskable icons empower this consistency.
Future-Proofing: As design trends evolve, maskable icons future-proof your application, ensuring it remains visually appealing and relevant on new platforms and OS versions.
No White Backgrounds: Without maskable icons, platforms that require specific icon shapes may place your standard icon on a white background, which can look unprofessional and inconsistent with your brand.

Tools for Creating Maskable Icons

To create effective maskable icons:

Maskable.app: A free online tool that allows you to upload your existing icon and preview how it will look when masked in different shapes. It also helps you adjust your icon to fit within the safe zone.
Design Tips:
- Ensure your icon has adequate padding around the main elements
- Place the most important visual elements in the center safe zone
- Test your icon across different mask shapes before implementation
- Consider using a solid background color rather than transparency

Conclusion

Optimizing icons for different sizes and embracing the concept of maskable icons are integral steps in delivering a polished and user-friendly Progressive Web App. Modern browser requirements have simplified to focus on the most important icon sizes (particularly 192x192 and 512x512), while maskable icons have become increasingly important for delivering a consistent experience across platforms.

As you fine-tune your manifest.json, keep these considerations in mind to create a visually stunning and adaptive experience for your users. Remember that a well-designed icon system not only enhances the visual appeal of your PWA but also improves user recognition and engagement across the diverse ecosystem of devices and platforms.
